There are many cable carrier systems produced by CKS Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

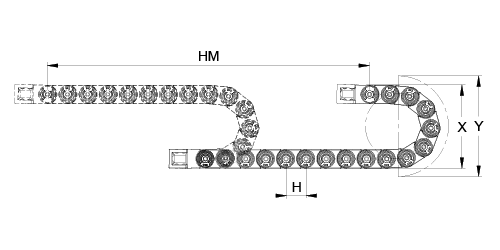

| Bending Radius | 40 | 75 | 100 | 125 |
|---|---|---|---|---|
| H (mm) | 42 | 42 | 42 | 42 |
| X (mm) | 122 | 192 | 242 | 292 |
| Y (mm) | 126 | 236 | 314 | 393 |
Openable From Inner Side , Plastic Medium Serie

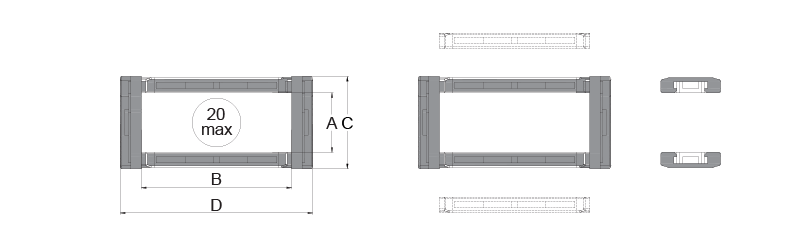

| CK25 A | A | B | C | D | R | W |
|---|---|---|---|---|---|---|
| MODEL | Inner Height (mm) | Inner Lenght (mm) | Outter Height (mm) | Outter Lenght (mm) | Bending Radius | Weight Kg/Mt |
| CK25 A 040 R ... | 25 | 40 | 42 | 62 | 40, 75, 100, 125 | 1,044 |
| CK25 A 050 R ... | 25 | 50 | 42 | 72 | 40, 75, 100, 125 | 1,092 |
| CK25 A 060 R ... | 25 | 60 | 42 | 82 | 40, 75, 100, 125 | 1,140 |
| CK25 A 080 R ... | 25 | 80 | 42 | 102 | 40, 75, 100, 125 | 1,236 |
| CK25 A 100 R ... | 25 | 100 | 42 | 122 | 40, 75, 100, 125 | 1,332 |
CK25 Serie Plastic Medium Serie Plastic End Bracket Assembly Dimensions Details
CK25 Serie Plastic Medium Serie Plastic End Bracket Assembly Details
CK25 Serie Plastic Medium Serie Steel End Bracket Assembly Dimensions Details
CK25 M1
CK25 M2
CK25 M3
CK25 M4
CK25 Serie Plastic Medium Serie Steel End Bracket Assembly Details
CK25 Series Plastic Medium Serie Seperators Details
Plastic Vertical CK25 SP
Plastic Horizontal CK25 YSP
CK25 Serie Plastic Medium Serie Strain Relief Details
CK SR 040
CK SR 050
CK SR 060
CK SR 070
CK SR 080
CK SR 100
CK SR 125
CK25 A series related files
| File Name | Step File | X_t File |
|---|---|---|
| CK25 P040 BAĞLANTI APARATI |  |
 |
| CK25 M040 BAĞLANTI APARATI | |
|
| CK25 A040 R040 | |
|
| CK25 A040 R075 | |
|
| CK25 A040 R100 | |
|
| CK25 A040 R125 | |
|
| CK25 NP040 BAĞLANTI APARATI | |
|
| CK25 P050 BAĞLANTI APARATI | |
|
| CK25 M050 BAĞLANTI APARATI | |
|
| CK25 A050 R040 | |
|
| CK25 A050 R075 | |
|
| CK25 A050 R100 | |
|
| CK25 A050 R125 | |
|
| CK25 NP050 BAĞLANTI APARATI | |
|
| CK25 P060 BAĞLANTI APARATI | |
|
| CK25 M060 BAĞLANTI APARATI | |
|
| CK25 A060 R040 | |
|
| CK25 A060 R075 | |
|
| CK25 A060 R100 | |
|
| CK25 A060 R125 | |
|
| CK25 NP060 BAĞLANTI APARATI | |
|
| CK25 P080 BAĞLANTI APARATI | |
|
| CK25 M080 BAĞLANTI APARATI | |
|
| CK25 A080 R040 | |
|
| CK25 A080 R075 | |
|
| CK25 A080 R100 | |
|
| CK25 A080 R125 | |
|
| CK25 NP080 BAĞLANTI APARATI | |
|
| CK25 NP100 BAĞLANTI APARATI | |
|
| CK25 P100 BAĞLANTI APARATI | |
|
| CK25 M100 BAĞLANTI APARATI | |
|
| CK25 A100 R040 | |
|
| CK25 A100 R075 | |
|
| CK25 A100 R100 | |
|
| CK25 A100 R125 | |
|
