CK35 Plastic Medium Serie

There are many cable carrier systems produced by CKS Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

CK35 A Serie
Open Frame     CK35 K Serie
Closed Cover     CK35 Y Serie
Half Covered
MATERIAL FEATURES
PA6 %30 Fiber Glass
Working Distance
80 Meter
SPEED
7 m/sec
OPERATING TEMPERATURE
-30 °C -+ 130°C
Bending Radius 5075100125150
H (mm) 5656565656
X (mm) 152202252302352
Y (mm) 157236314393471

CK35 Y Serie

Half Covered Design , Plastic Medium Serie

CK35
Inner Height
Y
Half Covered Design
060
Inner Lenght
R100
Bending Radius

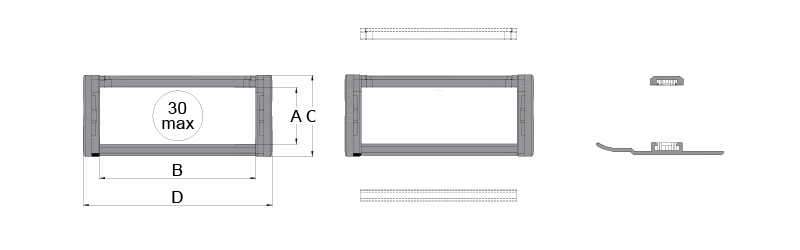

CK35 Y A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
CK35 Y 040 R ... 35 40 52 64 75, 100, 125, 150 1,404
CK35 Y 060 R ... 35 60 52 84 75, 100, 125, 150 1,530
CK35 Y 080 R ... 35 80 52 104 75, 100, 125, 150 1,656
CK35 Y 100 R ... 35 100 52 124 100, 125, 150 1,782
CK35 Y 125 R ... 35 125 52 149 100, 125, 150 1,926

Plastic End Bracket Assembly Dimensions

CK35 Serie Plastic Medium Serie Plastic End Bracket Assembly Dimensions Details

Plastic End Bracket Assembly

CK35 Serie Plastic Medium Serie Plastic End Bracket Assembly Details

Steel End Bracket Assembly Dimensions

CK35 Serie Plastic Medium Serie Steel End Bracket Assembly Dimensions Details

CK35 M1

CK35 M2

CK35 M3

CK35 M4

Steel End Bracket Assembly

CK35 Serie Plastic Medium Serie Steel End Bracket Assembly Details

Seperator Dimensions

CK35 Series Plastic Medium Serie Seperators Details

Open Series Plastic Vertical CK35 SP

Closed Series Plastic Vertical CK35 KSP

Plastic Horizontal CK35 YSP

Strain Relief

CK35 Serie Plastic Medium Serie Strain Relief Details

CK SR 040

CK SR 050

CK SR 060

CK SR 070

CK SR 080

CK SR 100

CK SR 125

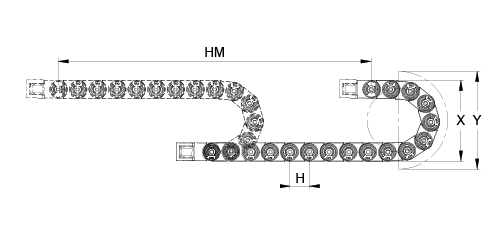

  • L : Calculation of the Chain Length
  • HM : Movement Distance
  • X : Mounting Height
  • Y : Radius Distance
  • H : Pitch
L = HM / 2 + Y X = R X 2 + C Y = R X π
