CK36 Plastic Medium Serie

There are many cable carrier systems produced by CKS Cable Carrier Systems. These systems can easily find the desired product with the material used, length, width, or categorized according to the intended use of the product.

MATERIAL FEATURES
PA6 %30 Fiber Glass
Working Distance
80 Meter
SPEED
7 m/sec
OPERATING TEMPERATURE
-30 °C -+ 130°C
Bending Radius 5575
H (mm) 6666
X (mm) 162202
Y (mm) 173235

CK36 A Serie

Openable From Inner Side , Plastic Medium Serie

CK36
Inner Height
A
Openable From Inner Side
050
Inner Lenght
R075
Bending Radius

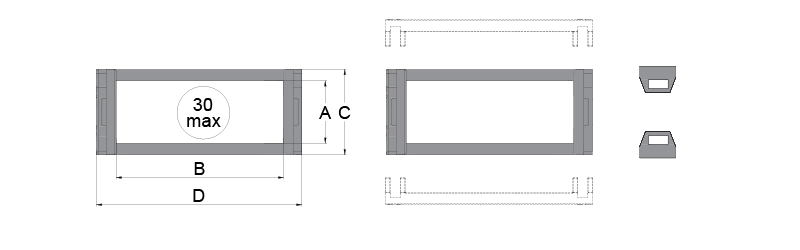

CK36 A A B C D R W
MODEL Inner Height (mm) Inner Lenght (mm) Outter Height (mm) Outter Lenght (mm) Bending Radius Weight Kg/Mt
CK36 A 050 R075 36 50 52 75 55, 75 1,5
CK36 A 080 R075 36 80 52 105 55, 75 1,65
CK36 A 100 R075 36 100 52 125 55, 75 1,725

Steel End Bracket Assembly Dimensions

CK36 Serie Plastic Medium Serie Steel End Bracket Assembly Dimensions Details

Steel End Bracket Assembly

CK36 Serie Plastic Medium Serie Steel End Bracket Assembly Details

Strain Relief

CK36 Serie Plastic Medium Serie Strain Relief Details

CK SR 040

CK SR 050

CK SR 060

CK SR 070

CK SR 080

CK SR 100

CK SR 125

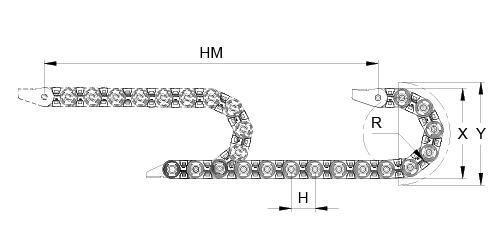

  • L : Calculation of the Chain Length
  • HM : Movement Distance
  • X : Mounting Height
  • Y : Radius Distance
  • H : Pitch
